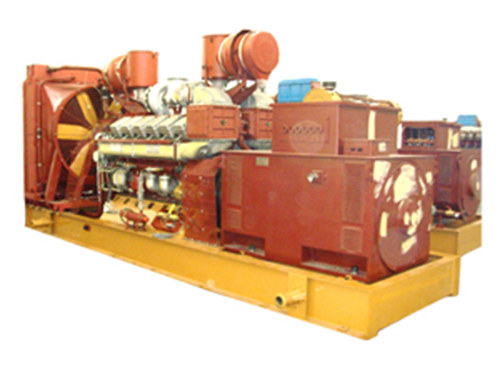

High-voltage Generator

High-voltage Generator

High-voltage Generator

Description of High-voltage Generator:
1. Power: 800kw and 1100 kW
2. Rated voltage: 6300V and 10500V
3. Rated frequency: 50 HZ
4. Net weight: 8000Kg, 15000Kg, 20200Kg
5. There are three models for customer's choice

Applications:
This generator is extensively used in power plant, large scale electrical equipment etc.

Technical Specification of High-voltage Generator:
Model Diesel engine model Rated power
(kW)
Rated rpm
(r/min)
Rated voltage
(V)
Rated frequency
(Hz)
Overall dimensions
(mm)
Net weight
(kg)
800GF6 G12V190ZLD5 800 1500 6300 50 5925x2040x2678 8000
800GF9 G12V190ZLD2 800 1500 10500 50 6500x2200x2800 15000
1100GF A12V190ZLD 1100 1500 6300 50 6651x2180x2739 20200
