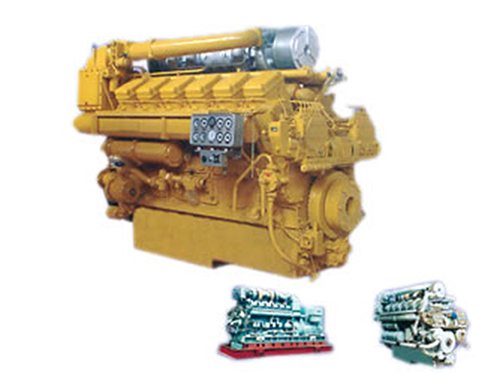

2000 Marine Engine

2000 Marine Engine (800~1000Kw)

2000 Marine Engine (800~1000Kw)

Features of 2000 Marine Engine:

1. Renowned fuel economy and durability
2. Improved lubrication system and monitor system
3. Rated rpm: 1450 r/min, 1500 r/min
4. Oil consumption: ≤1.6 g/kW.h
5. Overall dimensions: 2462 mm ×1588 mm×2070 mm

Applications:
1. This propulsion engine is used increasingly in fishing boats, high-speed passenger vessels and ocean vessels
2. It is exported to North Africa for ocean trawl boats and tuna fishing boats
3. It is also can be used in chaser, frigate, gunboat etc.

Technical Specification of 2000 Marine Diesel Engine:
Model Rated power
(kW)
Rated rpm
(r/min)
Fuel consumption(g/kW.h) Oil consumption(g/kW.h) Overall dimensions (mm) Net weight (kg)
Z12V190BC1 800 1500 ≤209.4 ≤1.6 2642×1588×2070 5300
Z12V190BC2 882 1500 ≤209.4 ≤1.6 2642×1588×2070 5300
Z12V190BC8 1000 1500 ≤209.4 ≤1.6 2642×1588×2070 5300
Z12V190BC9 882 1500 ≤209.4 ≤1.6 2642×1588×2070 5300
Z12V190BC10 900 1450 ≤209.4 ≤1.6 2642×1588×2070 5300
Z12V190BC11 882 1500 ≤209.4 ≤1.6 2642×1588×2070 5300
G12V190ZLC1 1000 1450 ≤209.4 ≤1.6 2642×1588×2070 5300
G12V190ZLC2 1000 1450 ≤209.4 ≤1.6 2642×1588×2070 5300
