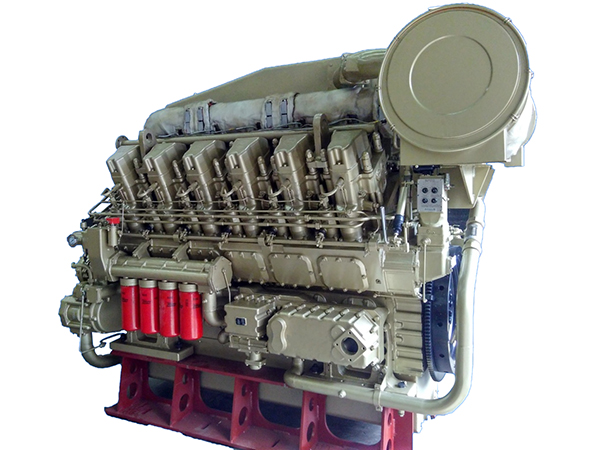

Long-stroke Marine Engine 4000

Long-stroke Marine Engine 4000 (1000, 1200Kw)

Long-stroke 4000 Marine Engine (1000, 1200Kw)

Description of Long-stroke Marine Engine 4000:

12-cylinder V-shape diesel engine
Fuel consumption: ≤202 g/kW.h
Oil consumption: ≤1.0 g/kW.h

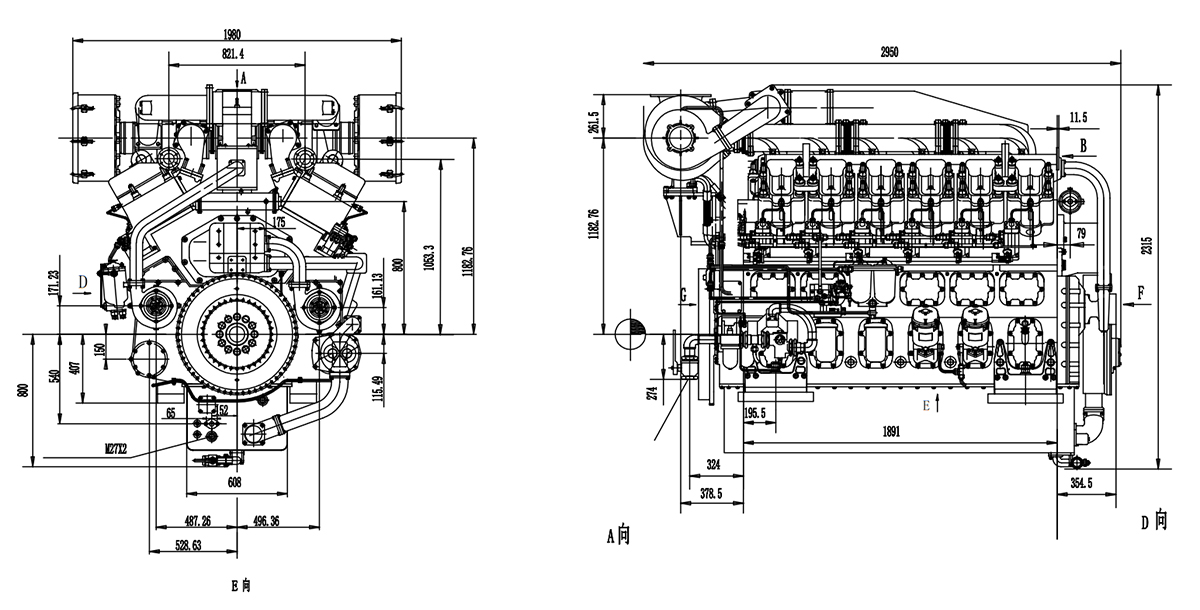

Overall dimensions: 2950m×1980m×2312m

Applications:
This propulsion engine is widely applied in such fields as oil drilling, exploitation and ships etc.

Technical Specification of Long-stroke Marine Engine 4000:
Model Rated power (kW) Rated rpm
(r/min)
Fuel consumption(g/kW.h) Oil consumption(g/kW.h) Overall dimensions (mm) Net weight
(kg)
L12V190ZLC-1 1200 1200 ≤202 ≤1.0 2950×1980×2312 9300
L12V190ZLC-2 1000 1000 ≤202 ≤1.0 2950×1980×2312 9300
