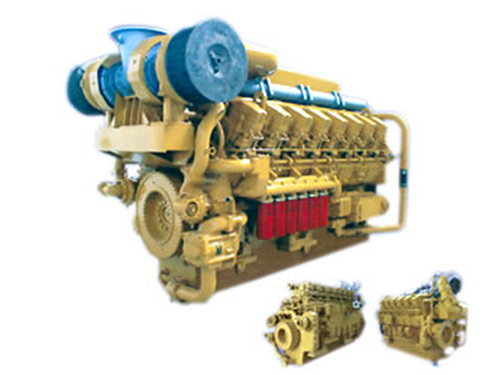

6000 Marine Engine (700~2200Kw)

6000 Marine Engine (700~2200Kw)

6000 Marine Engine (700~2200Kw)

Features of 6000 Marine Engine:

1. Integrating advanced technology from AVL of Austria
2. High efficiency and reliability
3. Rated power: 700~2200KW;
4. Net weight: 8200~13000Kg.
5. Fuel consumption: ≤200 g/kW.h;

Applications:
This propulsion engine is widely used to supply power for various diesel power generation plants, ocean drilling platforms and locomotives etc.

Technical Specification of 6000 Marine Diesel Engine:
Model Rated power
(kW)
Rated rpm (r/min) Fuel consumption(g/kW.h) Oil consumption(g/kW.h) Overall dimensions (mm) Net weight
(kg)
H12V190ZLC 1580 1450 ≤200 ≤1.0 3212×1597×2211 9500
H12V190ZLC2 1740 1500 ≤200 ≤1.0 3212×1597×2211 9500
H12V190ZLC-1 1200 1200 ≤200 ≤1.0 3212×1597×2211 9500
H16V190ZLC 2200 1500 ≤200 ≤1.0 3525×2060×2331 13000
H16V190ZLC-1 1650 1200 ≤200 ≤1.0 3525×2060×2331 13000
H8V190ZLC 1000 1450 ≤200 ≤1.0 3349×1416×2225 8200
H8V190ZLC-1 830 1200 ≤200 ≤1.0 3349×1416×2225 8200
H8V190ZLC-2 700 1000 ≤200 ≤1.0 3349×1416×2225 8200
H8V190ZLC-3 900 1300 ≤200 ≤1.0 3349×1416×2225 8200
