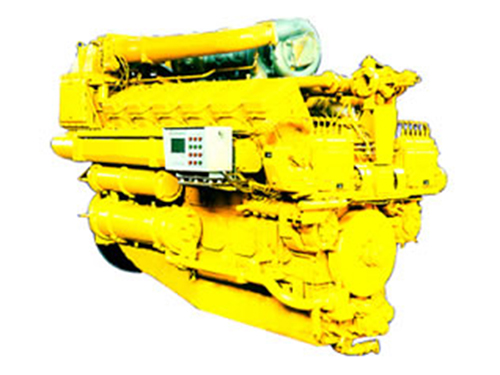

Locomotive Diesel Engine

Locomotive Diesel Engine

Locomotive Diesel Engine

Features of Locomotive Diesel Engine:
1. Adopt high-elastic couplers, air cylinder control system, oil pressure automatic shut-down device(dual press)
2. Rapid starting and acceleration, smooth running
3. Easy maintenance, remote operation
4. Different model of this powerful engine is available

Applications:
This type of industrial diesel engine is used increasingly in such industries as steel, petrochemical, coal and local railway etc.

Technical Specification of Locomotive Diesel Engine:
Model Rated power(KW) Fuel consumption(g/kw.h) Oil consumption(g/kw.h) Rated rpm(r/min) Net weight (Kg)
Z8V190J 588 ≤213.5+5% ≤2.7 1500 4300
Z8V190J1 588 ≤213.5+5% ≤2.7 1500 4300
Z12V190BJ 882 ≤209.4+5% ≤1.6 1500 5300
Z12V190BJ1 882 ≤209.4+5% ≤1.6 1500 5300
Z12V190BJ5 882 ≤209.4+5% ≤1.6 1500 5300
Z12V190BJ6 1000 ≤209.4+5% ≤1.6 1500 5300
Z12V190BJ8 1000 ≤209.4+5% ≤1.6 1500 5300
Z12V190BJ9 1000 ≤209.45+% ≤1.6 1500 5300
G12V190ZLJ 1000 ≤208+5% ≤1.6 1500 5300
A12V190ZLJ 1200 ≤205+5% ≤1.0 1500 9300
