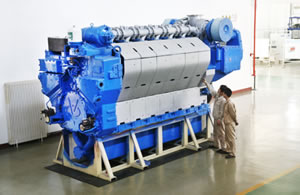

Gas Engine 12V26/32

Gas Engine 12V26/32

Our gas engine 26/32 is a kind of new type, high supercharged, high-power medium-speed engine with low consumption and high reliability. Our company has the 100% intellectual property right. We provide a variety of the gas engine including 6L26/32, 9L26/32, 12V26/32, and 16V26/32 types.

The gas engine is applicable to projects of natural gas pipeline network, booster pump station, compressor station for the underground natural gas storage, and more. It can also meet the power requirement in large gas-fired power station, distributed energy system, and other energy saving and emission reduction projects.

Technical Specifications

Type Four-stroke, water cooled, radial flow turbocharger, intake intercooled, precombustion chamber, multi-point injection, air-fuel ratio control
Number and arrangement of cylinders 12-cylinder, V type, 60° 16-cylinder, V type, 60°
Cylinder diameter×Stroke mm 260×320
Displacement of a single cylinder L 17
Compression ratio 11:1
Continuous power kW 2798 3730
Continuous revolution r/min 1000
Min. operating speed (steady-state) r/min 350
Under the operating condition of continuous power Fuel thermal efficiency g/kW.h 40%
Specific oil consumption g/kW.h 0.5
Mean effective pressure MPa 1.65
Mean speed of piston m/s 10.7
Exhaust gas temperature (after the turbo) ℃ 620
Smoke intensity FSU ≤0.5
Noise dB(A) ≤120
Emission g/Nm³ 0.5g/Nm³
Direction of rotation Counterclockwise (face the flywheel end)
Type of fuel Natural gas, marsh gas
Cooling mode Forced cooling
Lubrication mode Pressure lubrication
Starting mode Air motor
Overall size (l×b×h) mm 5748×2238×3255 6748×2353×3255
